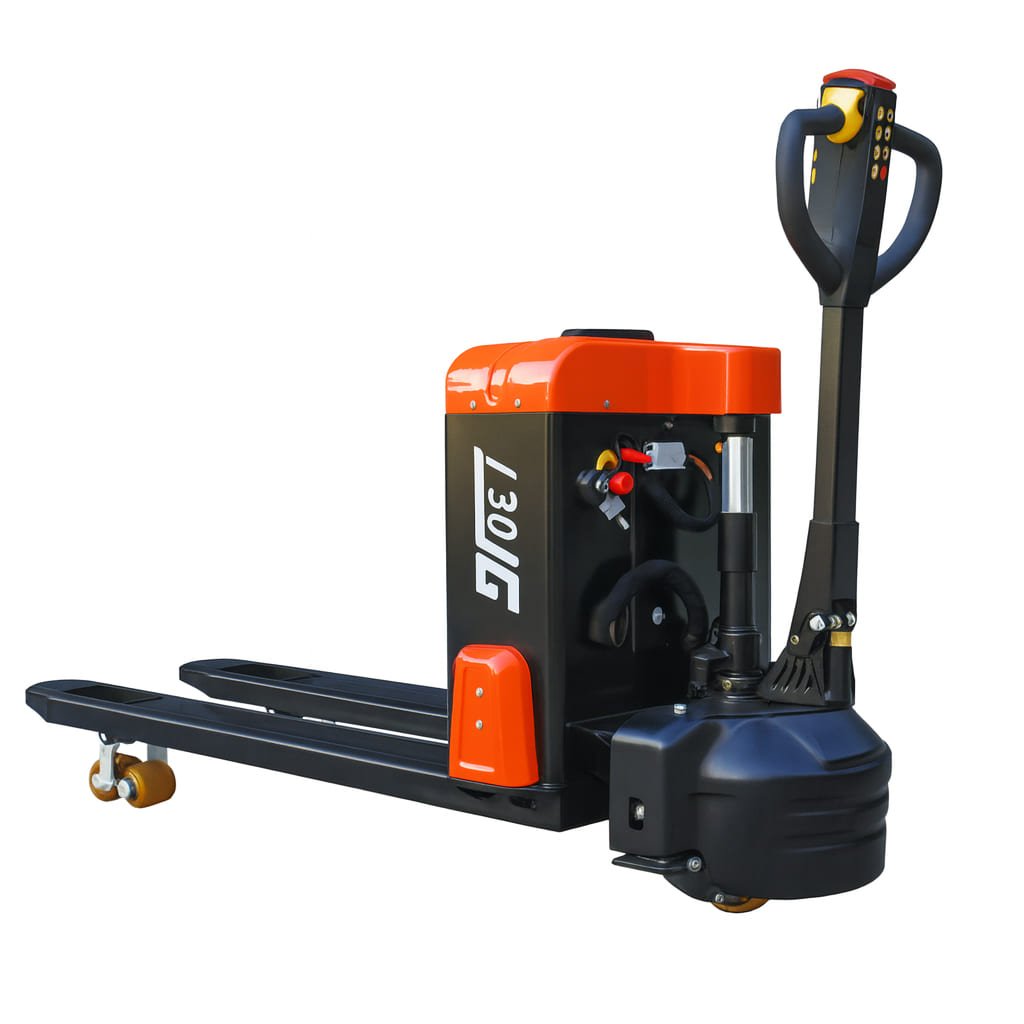

Electric Pallet Truck – 2.0T / 3.0T Heavy-Duty Lithium Powered Walkie Pallet Jack

Model	CTX20 / CTX30Q
Rated Traction Weight (KG)	2000 / 3000
Load Center (mm)	600
Lift Height (mm)	200 (customizable)
Outer Fork Spacing (mm)	550 / 685
Driving Wheel Size (mm)	Φ170 × 52
Bearing Wheel Size (mm)	Φ80 × 70
Minimum Right Angle Width (mm)	1560
Full Load Driving Speed (km/h)	3.5
Full Load Increase Speed (mm/sec)	125
Overall Length (mm)	1625
Overall Width (mm)	695
Vehicle Height (mm)	1280
Minimum Turning Radius (mm)	1350
Full Load Climbing Slope (°)	10
Wheel Type	Polyurethane
Battery Voltage (V/Ah)	48V 32Ah / 20Ah
Weight (KG)	175
Walking Motor (kW/60min)	48V 0.8 kW
Oil Pump Motor (kW/15min)	48V 0.8 kW
Operation Type	Walking style
Controller	48V Permanent magnet brushless
Noise Level (dB(A))	≤ 70
