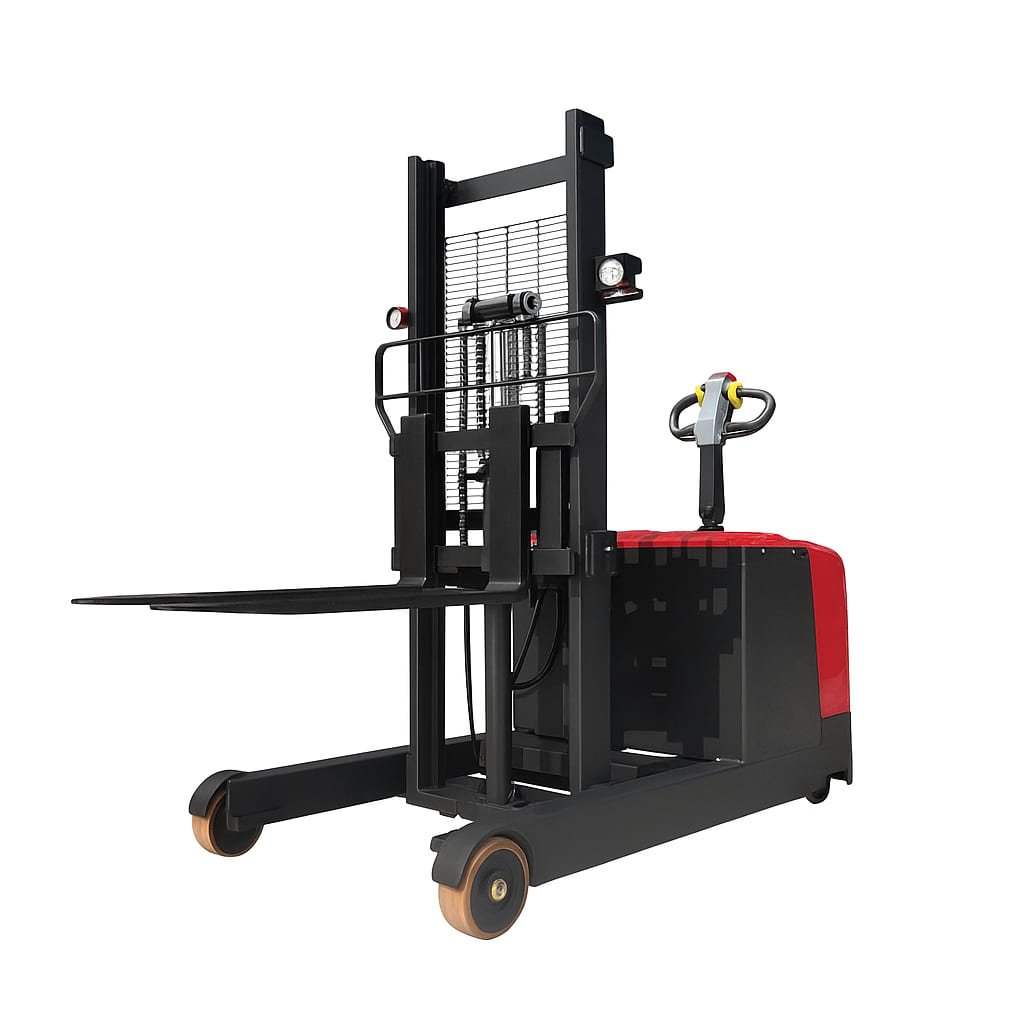

Voltruk 1.0–2.0 Ton Electric Reach Truck (CQD Series)

Category	Item	Specification / Description
Basic Parameters	Rated Load Capacity	1000 / 1500 / 2000 kg
	Load Center Distance	500 mm
	Lift Height	1600 / 2000 / 2500 / 3000 / 3500 mm (customizable)
	Fork Reach Distance	500 mm
Wheel & Dimensions	Front Tyre Size	Φ250 × 80 mm
	Rear Tyre Size	Φ210 × 85 mm
	Track Width	1280 mm
	Mast Lowered Height	1590 / 1850 / 2090 / 2350 mm
	Maximum Working Height	2090 / 2590 / 3090 / 3590 / 4090 mm
	Overall Length	2570 mm
	Overall Width	1050 mm
	Fork Size	100 × 35 × 1070 mm
	Minimum Turning Radius	1800 mm
Performance	Full Load Climbing Slope	5°
	No Load Climbing Angle	8°
Wheel Type	Material	Polyurethane (PU)
Weight	Service Weight	1400–1800 kg
Brake System	Service Brake	Electromagnetic regenerative braking
Steering System	Steering Method	Mechanical steering
Operation	Operating Type	Walking, standing, or driving (depending on version)
Drive System	Drive Mode	Electric (battery powered)
Noise Level	Noise (dB)	≤ 70 dB
