| Category | Item | Specification / Description |
|---|---|---|
| Basic Parameters | Rated Load Capacity | 1500 kg |
| Load Center Distance | 500 mm | |
| Lift Height | 3000 mm (customizable) | |
| Dimensions | Axle Center to Fork Face | 770 mm |
| Driving Wheel Size | Φ330 × 145 mm | |
| Bearing Wheel Size | Φ120 × 75 mm | |
| Balance Wheel Size | Φ200 × 55 mm | |
| Free Lift Height | 2080 mm | |
| Maximum Gantry Height | 3820 mm (customizable) | |
| Overall Length | 3880 mm (fork forward) / 2880 mm (side fork) | |
| Overall Width | 1530 mm | |
| Fork Length | 1220 mm (customizable) | |
| Minimum Turning Radius | 1820 mm | |
| Performance | Full Load Climbing Slope | 5° |
| Wheel Type | Polyurethane (PU) | |
| Type of Drive Control | AC (Alternating Current) Speed Control | |
| Steering Type | Electronic Steering | |
| Noise Level | ≤ 70 dB(A) | |
| Full Load Lift Speed | 102 mm/s | |
| Empty Load Lift Speed | 160 mm/s | |
| Wheelbase | Drive End Wheelbase | 710 mm |
| Load Bearing End Wheelbase | 1235 mm |
Electric Equipment

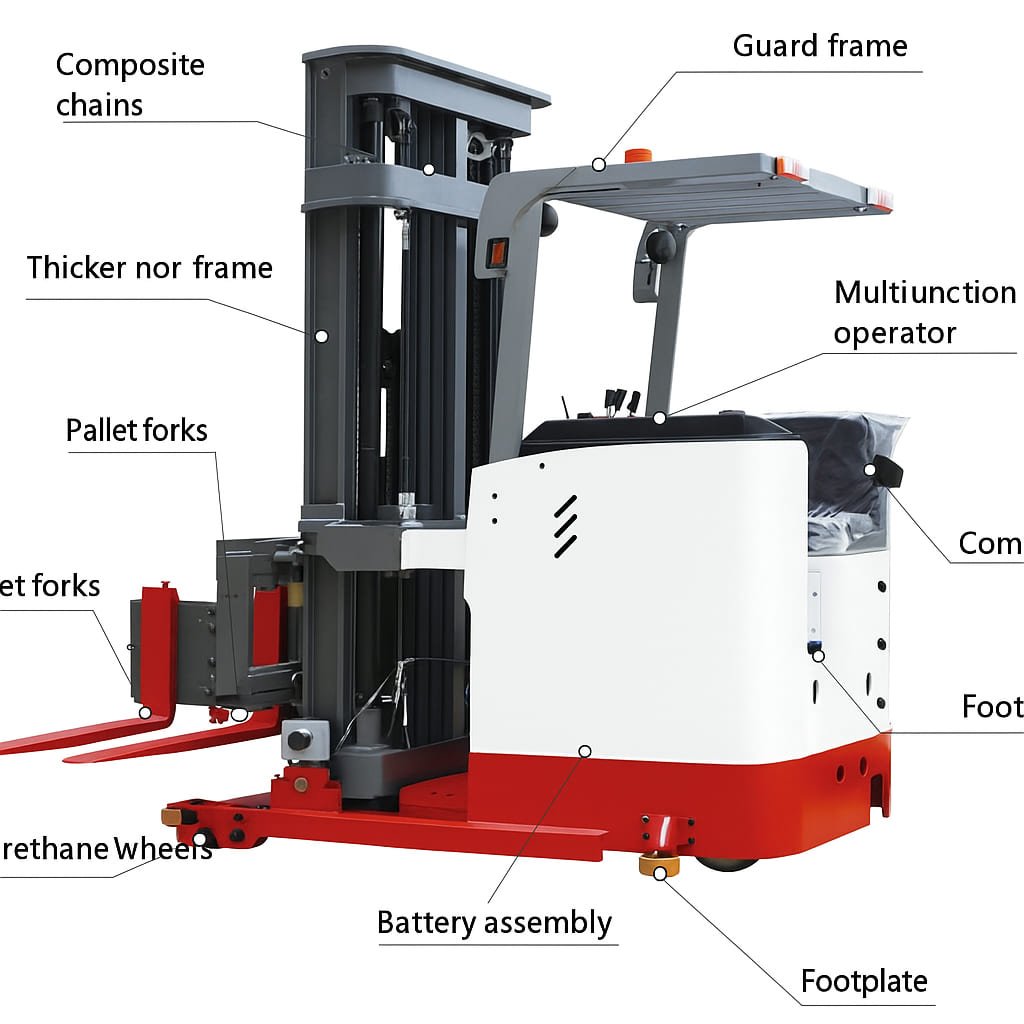

Voltruk 1.5 Ton Three-Way Electric Stacker
