| Category | Item | Specification / Description |
|---|---|---|
| Basic Parameters | Rated Load Capacity | 1000 kg |
| Load Center Distance | 500 mm | |
| Lift Height | 3000 mm (customizable) | |
| Driving Style | Standing operation | |
| Dimensions | Front Wheel Size | Φ200 / 80 mm |
| Auxiliary Wheel Size | Φ100 / 40 mm | |
| Front Track Width | Φ930 mm | |
| Rear Wheelbase | Φ720 mm | |
| Gate Lifting Height | 2080 / 2580 / 3080 / 3580 mm (customizable) | |
| Overall Length | 2460 mm | |
| Overall Width | 980 mm | |
| Overall Height | 2080 / 1580 / 1830 / 2080 mm (customizable) | |
| Minimum Turning Radius | 1350 mm | |
| Ground Clearance | 60 mm | |
| Wheel System | Wheel Material | Polyurethane (PU) |
| Performance | Full Load Driving Speed | 5.5 mm/s |
| Empty Load Driving Speed | 3.5 mm/s | |
| Fork Width (inside) | 490 mm | |
| Fork Width (outside) | 690 mm | |
| Full/Empty Load Descent Speed | Controlled | |
| Full Load Lifting Speed | 70 mm/s | |
| Empty Load Lifting Speed | 50 mm/s |
Electric Equipment

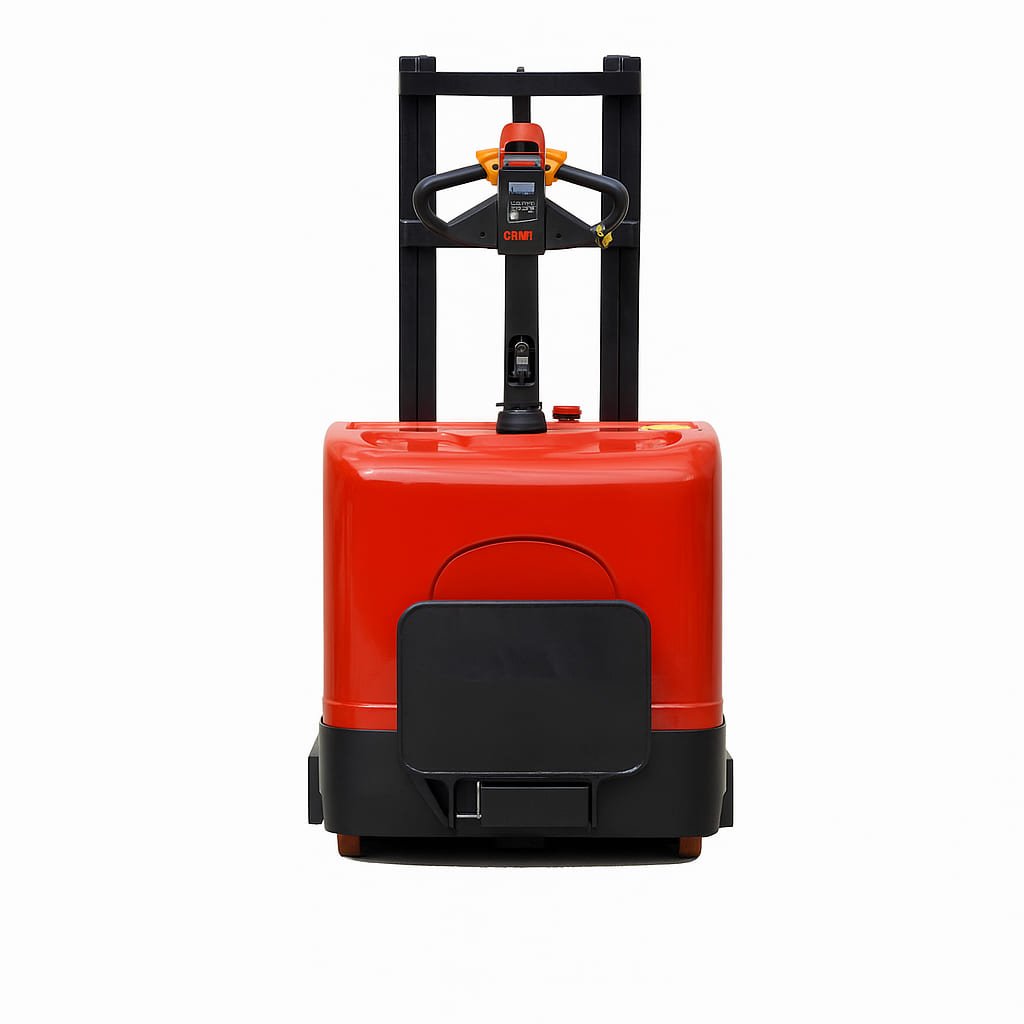

Voltruk CPDB-10 – 1.0T Heavy-Duty Electric Stacker
