| Category | Item | Specification / Description |
|---|---|---|
| Basic Parameters | Rated Load Capacity | 1500 / 2000 kg |
| Load Center Distance | 500 mm | |
| Lift Height | 3000 mm (customizable) | |
| Dimensions | Wheelbase | 1212 mm / 1260 mm |
| Driving Wheel Size | Φ210 × 70 mm | |
| Bearing Wheel Size | Φ80 × 70 mm | |
| Balance Wheel Size | Φ115 × 55 mm | |
| No Lifting Height | 1580 / 1880 / 2180 mm (customizable) | |
| Gate Lifting Height | 2069 / 2569 / 3069 mm (customizable) | |
| Overall Length | 1920 / 1990–2380 mm | |
| Overall Width | 800 mm | |
| Fork Length | 1070 mm (customizable) | |
| Minimum Turning Radius | 1500 / 2000 mm | |
| Performance | Full Load Climbing Slope | 5° / 3° |
| Wheel Type | Polyurethane (PU) | |
| Fork Height Above Ground | 90 mm / 85 mm | |
| Machine Weight | 550 / 830 kg | |
| Noise Level | ≤ 70 dB(A) | |
| Full Load Driving Speed | 4 / 4.2 km/h | |
| Idle Driving Speed | 4.5 / 5.6 km/h | |
| Full Load Lifting Speed | 50 / 55 mm/s | |
| Empty Load Lifting Speed | 80 mm/s |
Electric Equipment

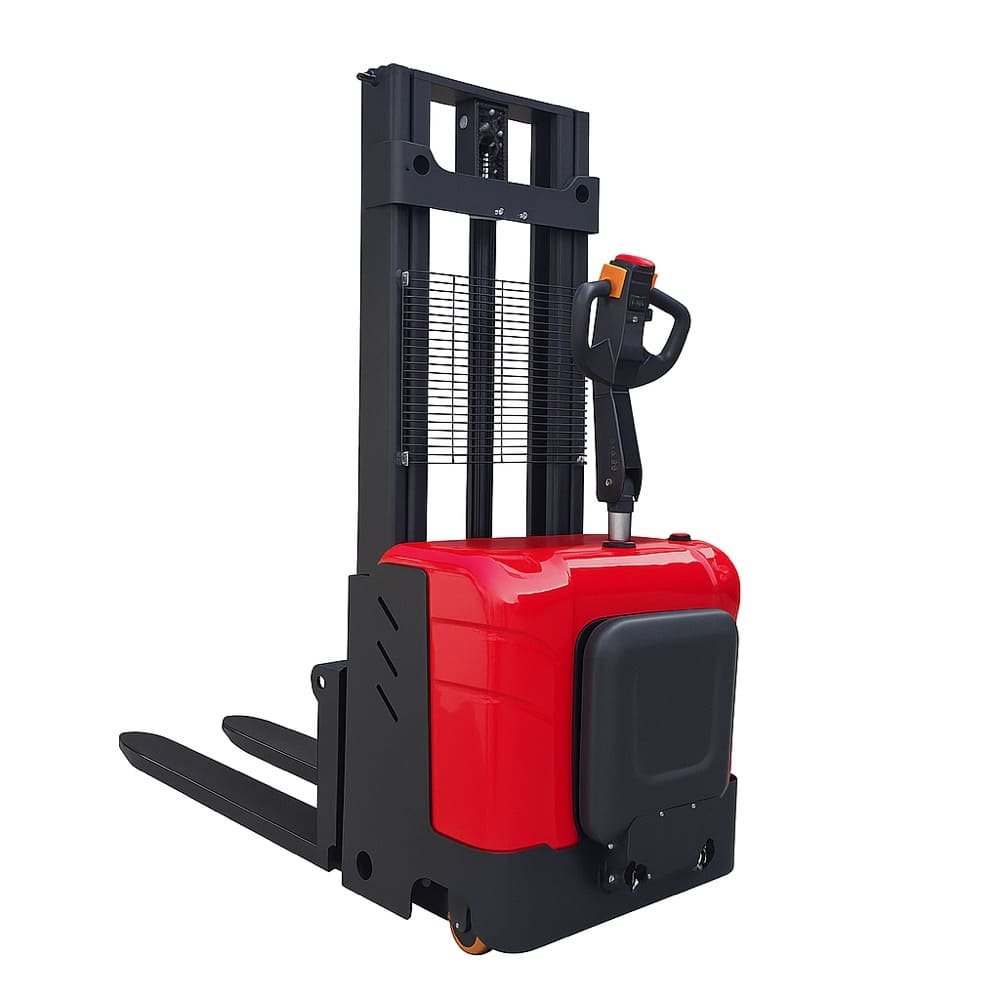

Voltruk Double Lifting Electric Stacker
